Steamboat Aladin

nation:
Nation: GER
06.06.2009

length
6.90 m
22'-8"
beam
1.65 m
5'-5"
draft
0.60 m
2'-0"
weight
1050 kg
2315 lb
engine: Own Design
50 + 50 x 70
1.97" + 1.97" x 2.76"
boiler: Vertical Fire Tube, max. 10.0 bar/ 145psi

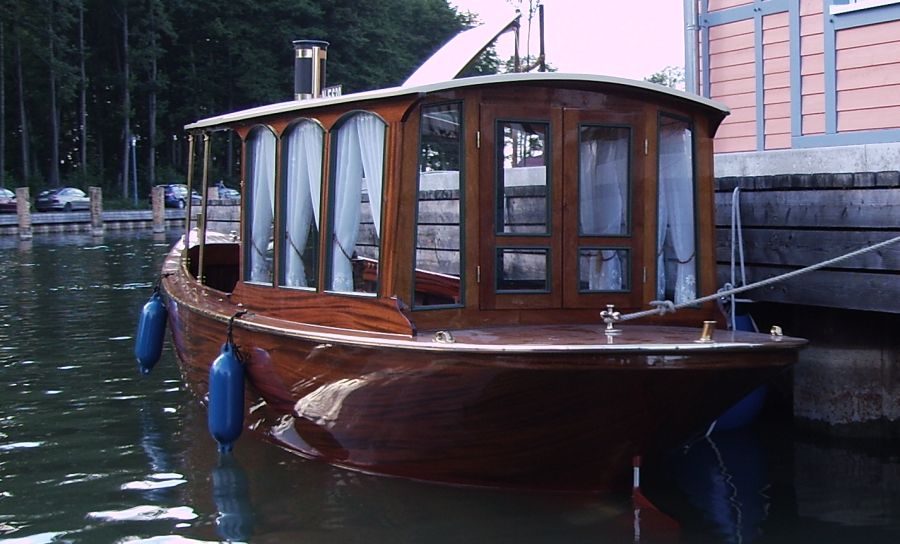

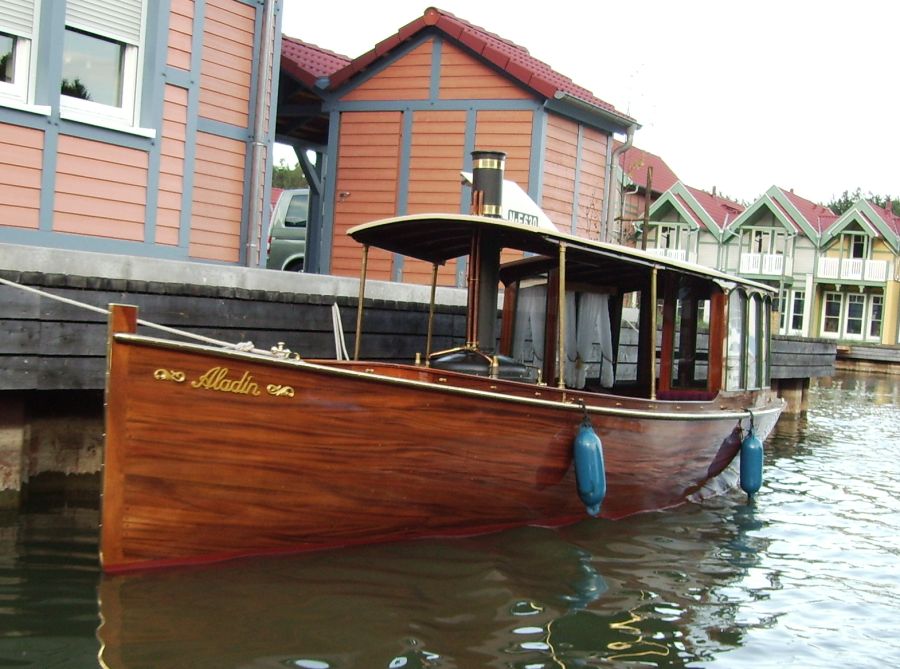

Steamboat Aladin - Picture 1 - taken by Rainer Radow: 2006-08
Picture 1 - taken by Rainer Radow: 2006-08
Summer 2006 in Rheinsberg, Germany

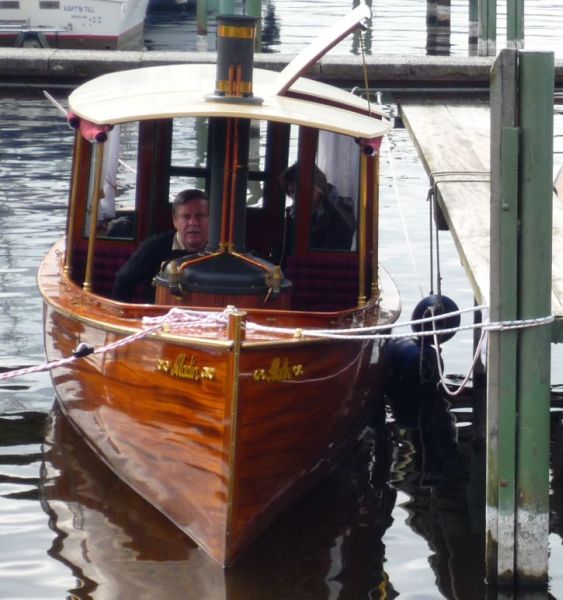

Steamboat Aladin - Picture 2 - taken by Rainer Radow: 2006-08
Picture 2 - taken by Rainer Radow: 2006-08
Summer 2006

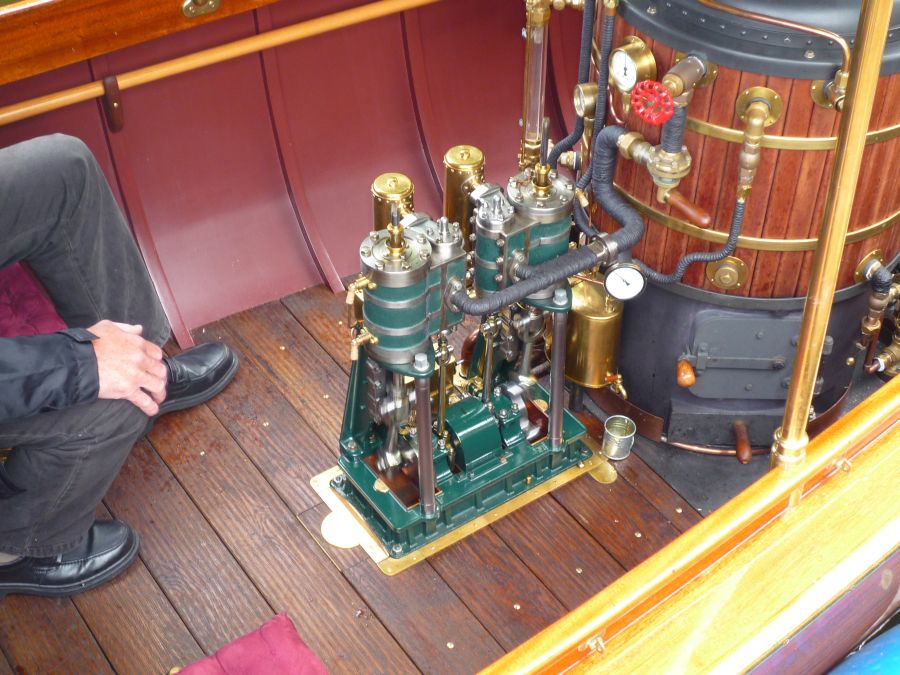

Steamboat Aladin - Picture 3 - taken by Rainer Radow: 2009-05
Picture 3 - taken by Rainer Radow: 2009-05
Clean engine room! Between the cylinder you can see a green box over the crank shaft. From here a chain drives the prop shaft which is locatet under the floor.

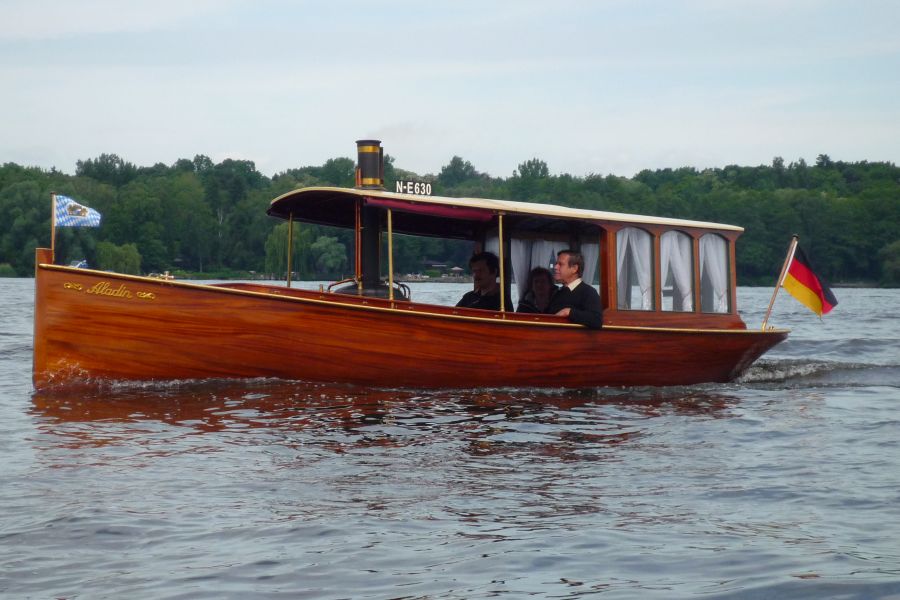

Steamboat Aladin - Picture 4 - taken by Rainer Radow: 2006-08
Picture 4 - taken by Rainer Radow: 2006-08
Summer 2009 at the DDV meet in Berlin, Germany.
At this picture you can see the opened roof door. So even on high landings you can easily enter the boat.

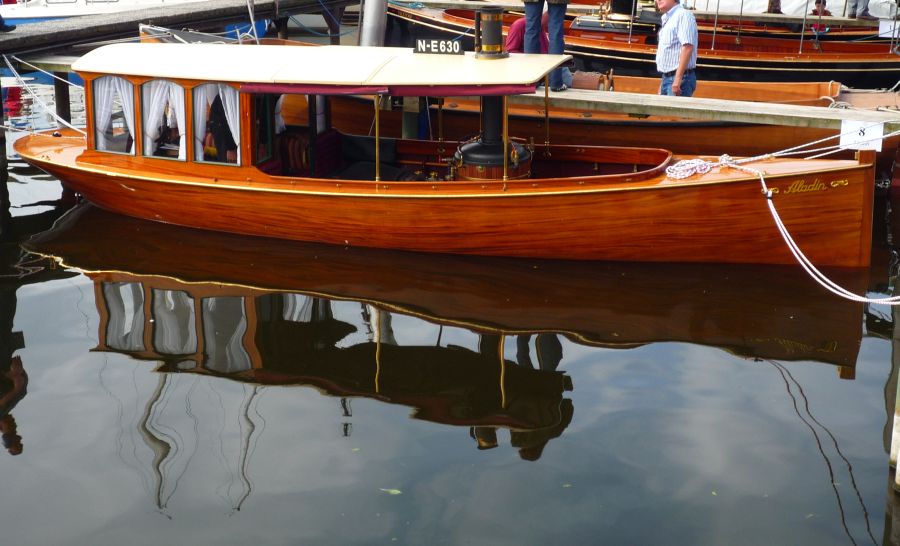

Steamboat Aladin - Picture 5 - taken by Rainer Radow: 2009-05
Picture 5 - taken by Rainer Radow: 2009-05
Summer 2009


Steamboat Aladin - Picture 6 - taken by Rainer Radow: 2009-05
Picture 6 - taken by Rainer Radow: 2009-05
Summer 2009

First release of this page: 21.08.2006. last update: 06.06.2009.
