Steamboat Säntis

nation:
Nation: CH
15.05.2011

length
5.09 m
16'-8"
beam
2.00 m
6'-7"
engine: Anthony Bever
50.8 + 82.6 x 50.8
2" + 3 1/4" x 2"
boiler: 3 Drum Water Tube, max. 10.0 bar/ 145psi
Prop: 0 x 0 mm / 3-Blatt Schraube
db-saentis.jimdo.com

Steamboat Säntis - Picture 1
Picture 1

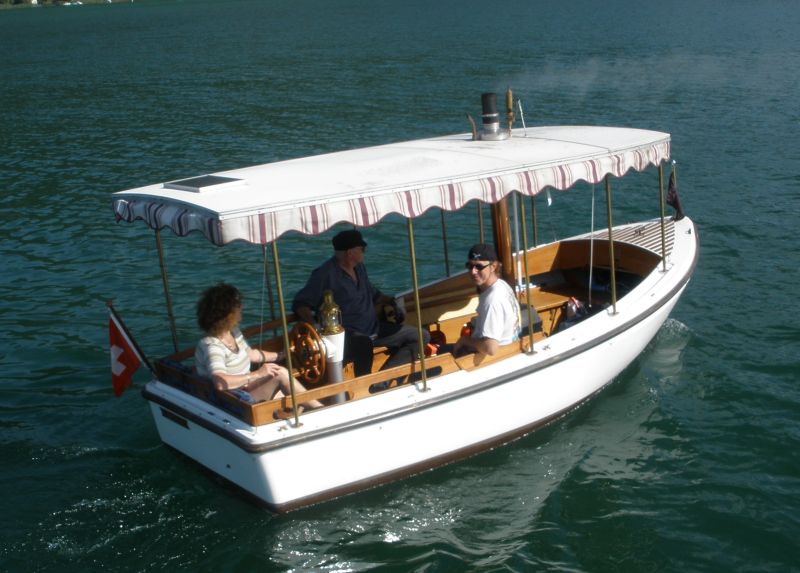

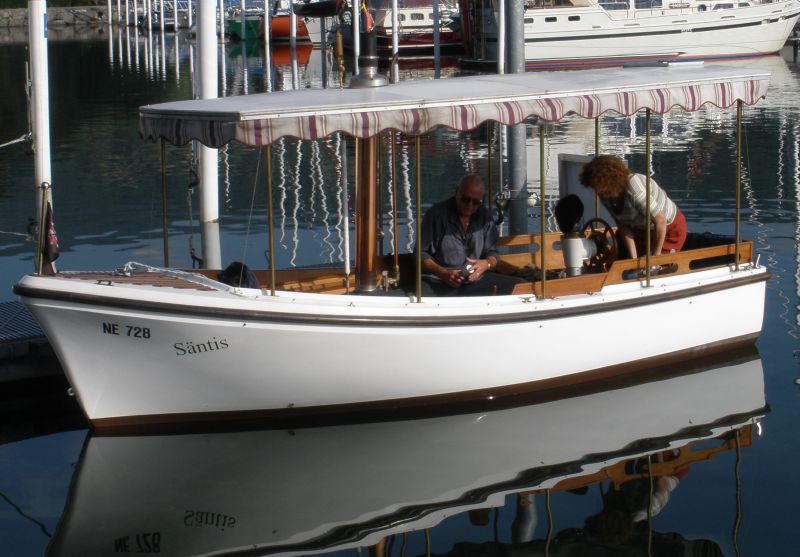

Build Juni 2001 from Bossoms Boatyard Ltd, Binsey Village, Oxford. Oyster 16 Class. GFK. Oiled Teak. 6 seats.

Steamboat Säntis - Picture 2
Picture 2


Steamboat Säntis - Picture 3
Picture 3

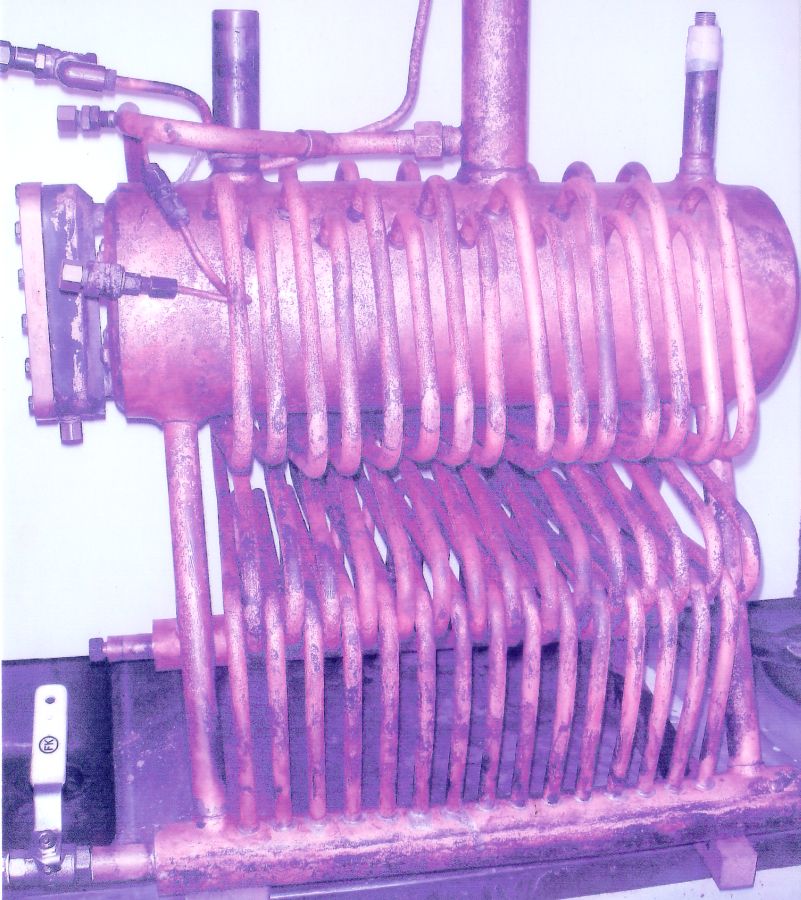

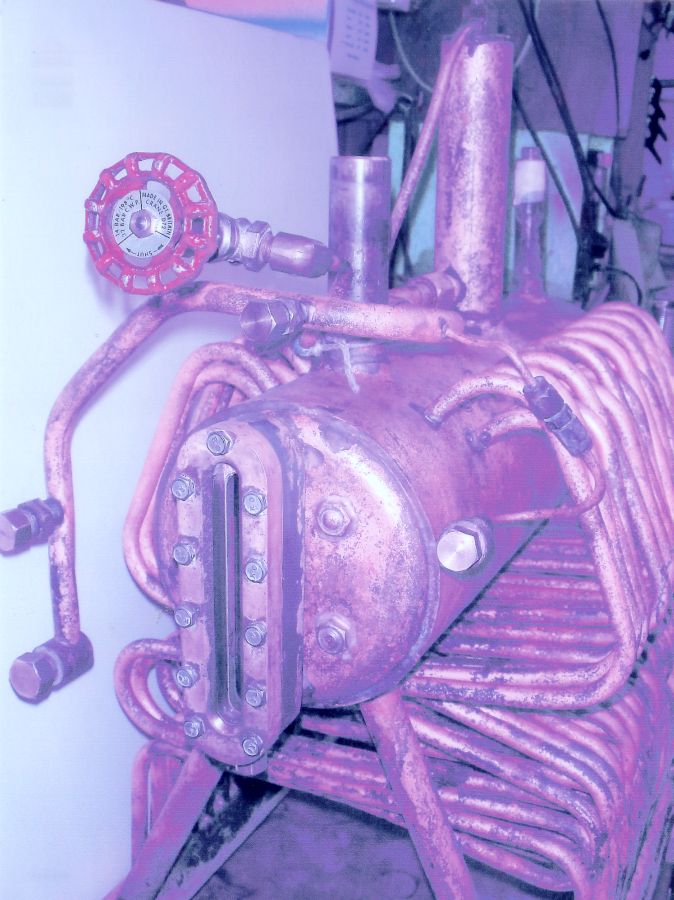

3-drum water tube boiler made from coper.

Steamboat Säntis - Picture 4
Picture 4


Steamboat Säntis - Picture 5
Picture 5

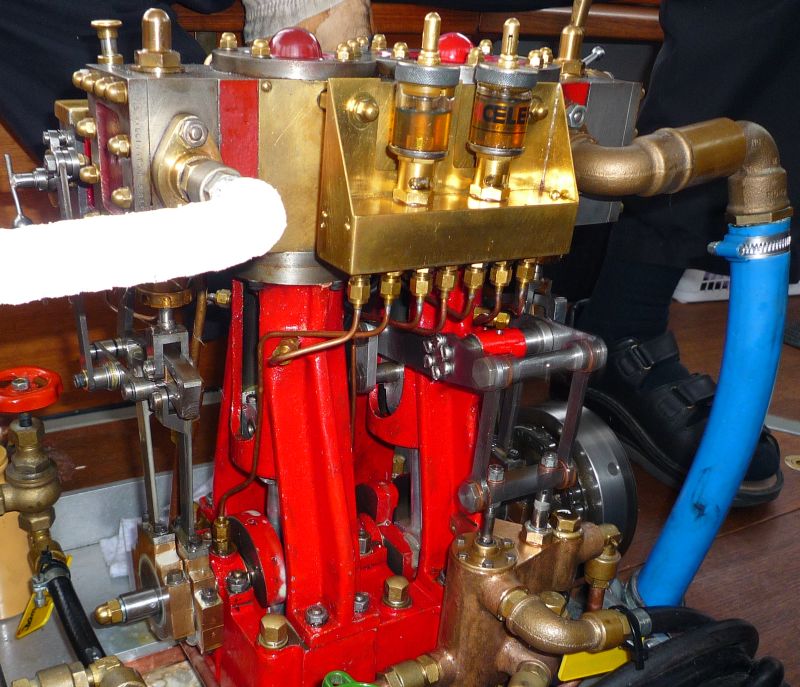

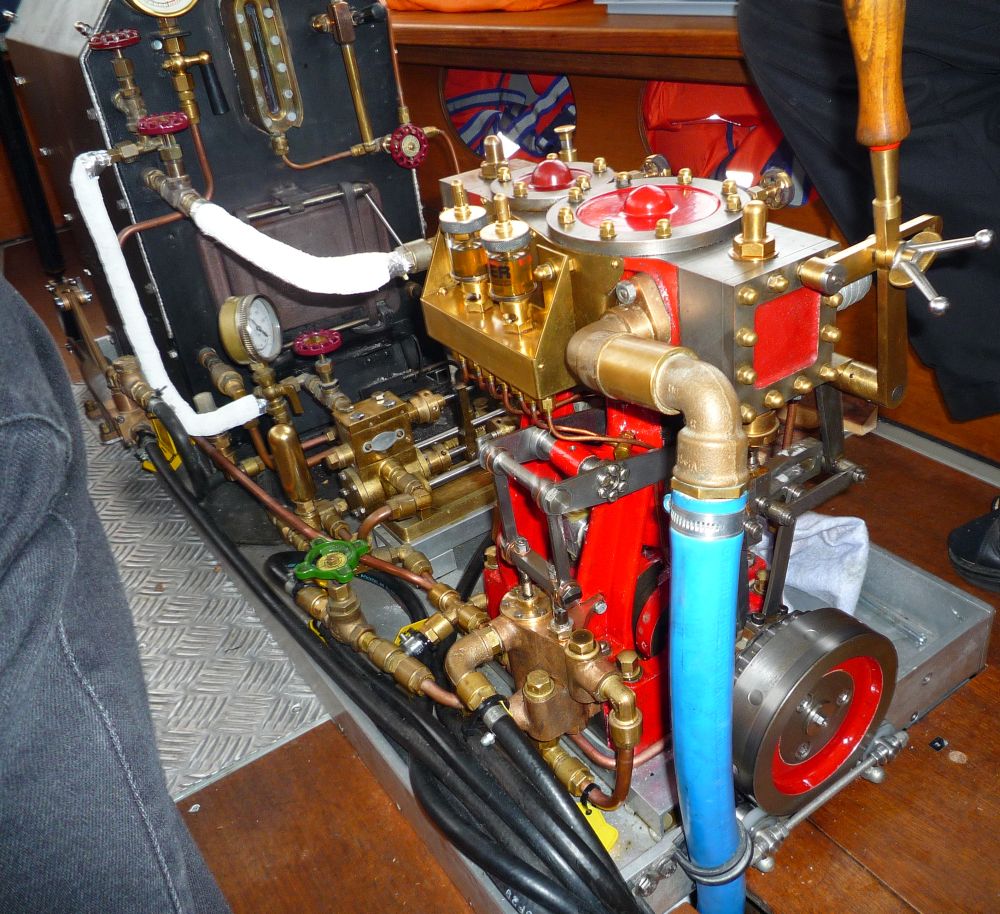

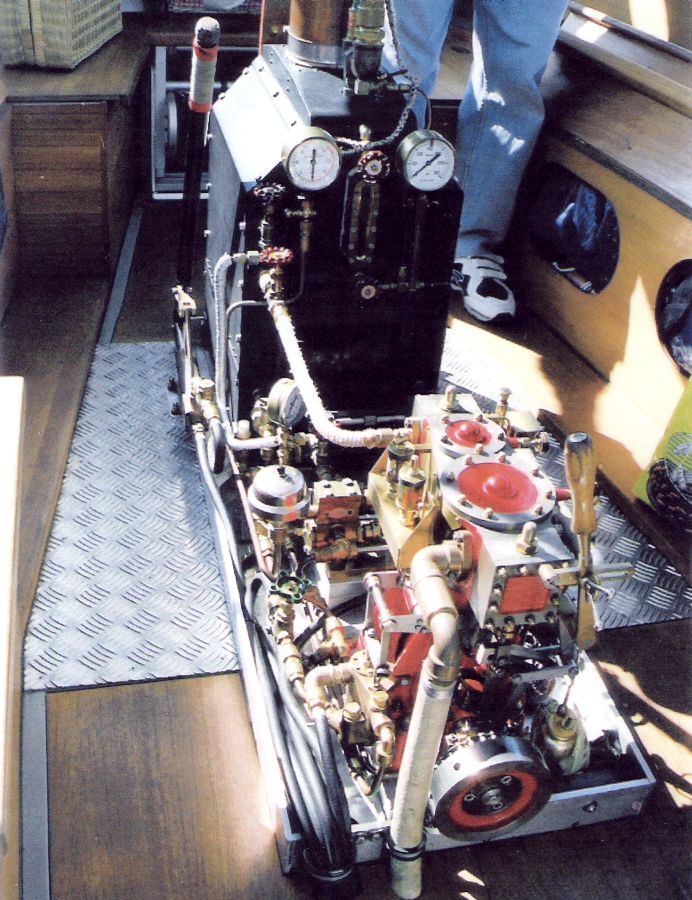

Engine1987 build by FS Wallington, Bristol. Construction A. Bever. Compound. D-Slide Valve. Stephenson reverse link. Feed and vaccuum pump driven by crosshead. 3 HP at 500 rpm.

Steamboat Säntis - Picture 6 - taken by Rainer Radow: 2009-05
Picture 6 - taken by Rainer Radow: 2009-05


Steamboat Säntis - Picture 7 - taken by Rainer Radow: 2009-05
Picture 7 - taken by Rainer Radow: 2009-05


Steamboat Säntis - Picture 8
Picture 8


Steamboat Säntis - Picture 9 - taken by Rainer Radow: 2009-05
Picture 9 - taken by Rainer Radow: 2009-05


Steamboat Säntis - Picture 10 - taken by Rainer Radow: 2009-05
Picture 10 - taken by Rainer Radow: 2009-05


First release of this page: 06.12.2008. last update: 15.05.2011.
