Steamboat Vaporosa

nation:
Nation: CH
24.08.2020

length
7.11 m
23'-4"
beam
2.00 m
6'-8"
draft
0.60 m
2'-0"
weight
1140 kg
2510 lb
engine: Semple V
76.2 + 127.0 x 101.6
3" + 5" x 4"
boiler: Vertical Fire Tube, max. 10.5 bar/ 152psi
Kingdom Type
Prop: 500 x 750 mm / 19.7 x 29.5" > Ratio = 1 : 1.50

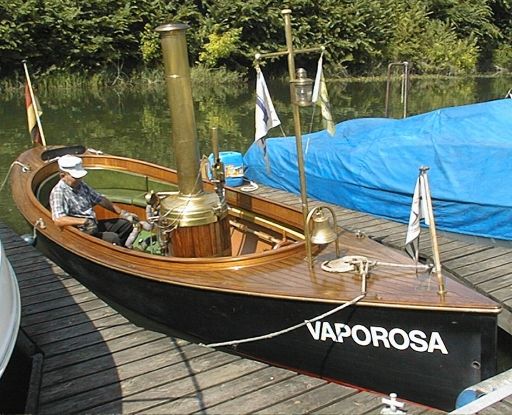

Steamboat Vaporosa - Picture 1
Picture 1
Technical Data
Hull
year purchased 1988
year launched 1991
boat builder Elliot Bay #19
material fibre glass
color black (red bottom)
LOA 7.11 m / 23'4"
LWL 6.50 m / 21'4"
beam 2.00 m / 6'8"
draft 0.60 m / 23"
sped 7.5 knots
weight 2,550 lbs.
Engine
type v-compound
builder Semple Co. USA
year build 1982
stroke 101.6 mm / 4"
HP d = 76.2 mm / 3"
LP d = 127.0 mm / 5"
estimated internal HP about 10 iHP at 400 rpm at ? psi...
valve / reverse type slide / slip eccentric
condenser & material keel - copper
chain driven vacuum pump
Boiler
type vertical fire tube (VFT)
builder Semple Co. USA
year build 1986
safety setting 10.5 bar / 165 psi
heating surface 4 m2 / 43 sq. ft.
# & size of tubes 145 - 1"
grate area 0.16 m2 / 1.72 sq. ft.
fuel wood / coal
Buffalo injector chain driven twin piston feed pump
Propulsion 3 blades; d 500 mm x 750 mm / d 20" x 30"

Additional manual feedpump; stack blower; steam whistle; steam siren; shaft can be disconnected from engine for free-wheeling; rev-meter; telescoping mast; bell on fore deck; petroleum fired position lights; deck covered with 3/4" gauge teak; interior made from mahagony.

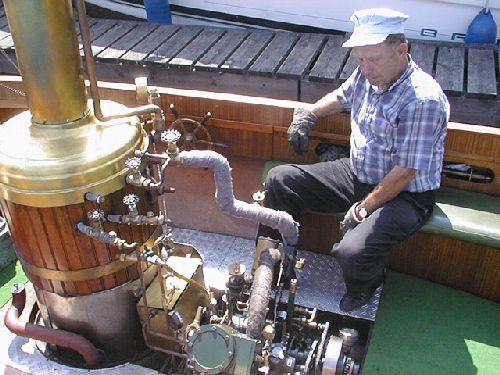

Steamboat Vaporosa - Picture 2

Picture 2

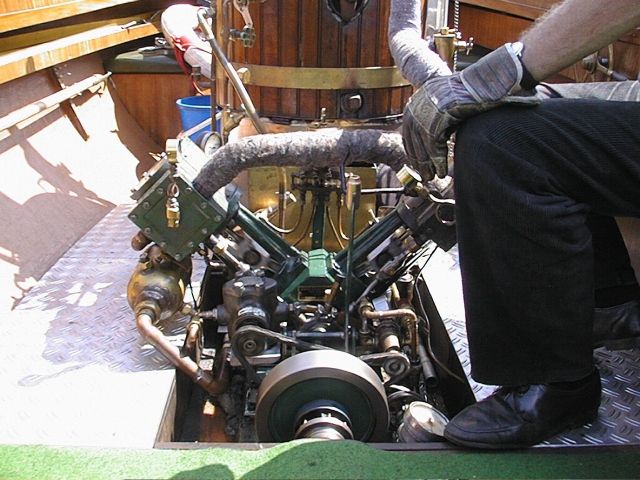

Steamboat Vaporosa - Picture 3
Picture 3

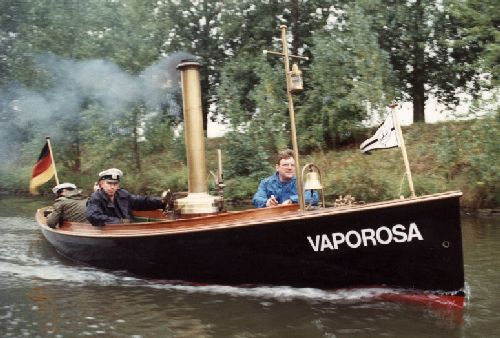

Steamboat Vaporosa - Picture 4
Picture 4
Vaporosa moved to Switzerland around 2019 under a new owner.


Vaporosa 2009 (Original YouTube Titel)


First release of this page: 30.06.2000. last update: 24.08.2020.
