Steamboat Petäjäs

nation:
Nation: SF
15.03.2007

length
6.10 m
20'-0"
beam
1.83 m
6'-0"
engine: Davis & Son
1 Zylinder
Single
boiler: Water Tube, max. 4.0 bar/ 58psi

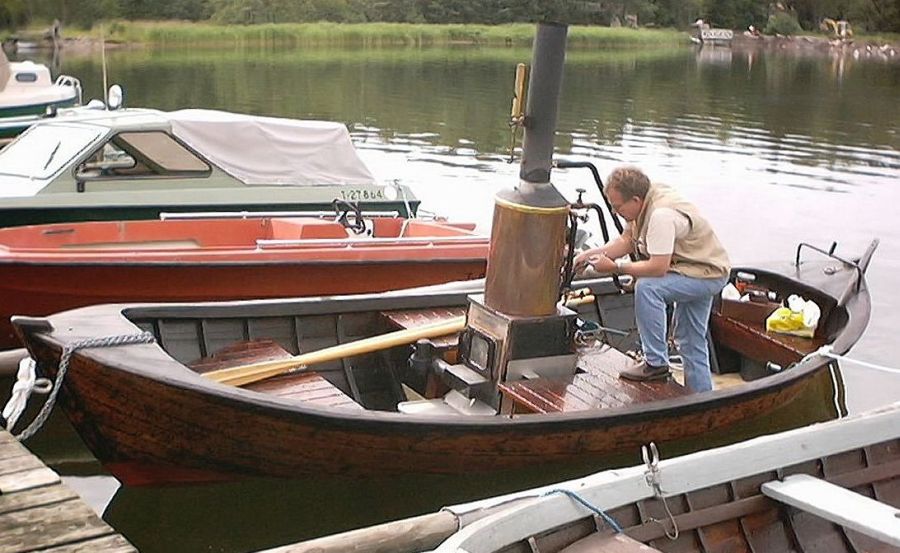

Steamboat Petäjäs - Picture 1
Picture 1
"Hello Rainer!

I have a small steamlaunch in city Rauma Finland.

Engine: old petrolmotor, steamcylinder is on top of the piston. Cylinder is from steamhydraulic. Engine makes 1 hp at 300 rpm.

Boiler: Spiral watertube from steammaker gives 40 kg/h 4 bar steam using 20 kg wood/h.

Boat has 120 L freshwatertank. Old oilpump from outboard pushes 0,2 L/h oil to steam for lubrication.

Hull: 50 years old fishingboat 20` x 6` full speed 4 knots."

First release of this page: 16.08.2006. last update: 15.03.2007.
